Sam’s Club Murrieta #4822
Jauregui & Culver, Inc. provided a turnkey fuel system replacement including tanks, dispensers, piping, monitoring system, Healy Clean Air Separator, and vent assembly. Additionally, we furnished and installed a 10,000 gallon diesel UST to add to the existing fuel system.

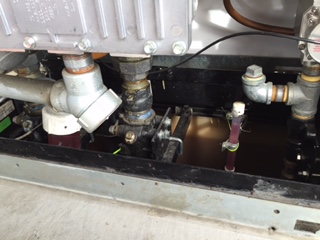

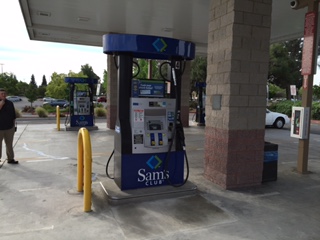

Sam’s Club Vacaville #6433

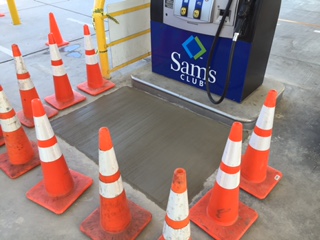

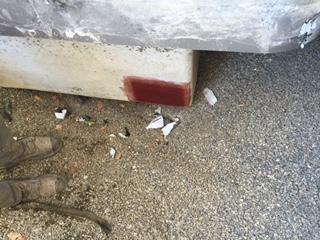

Jauregui & Culver, Inc. repaired one under dispenser containment (UDC) unit. The UDC was leaking brine liquid. Jauregui & Culver, Inc. excavated next to the UDC and sealed the leak using fiberglass matting and resin per manufacture specifications and industry standards. Once completed, the Veeder Root sensor was reinstalled and tested for functional ability.

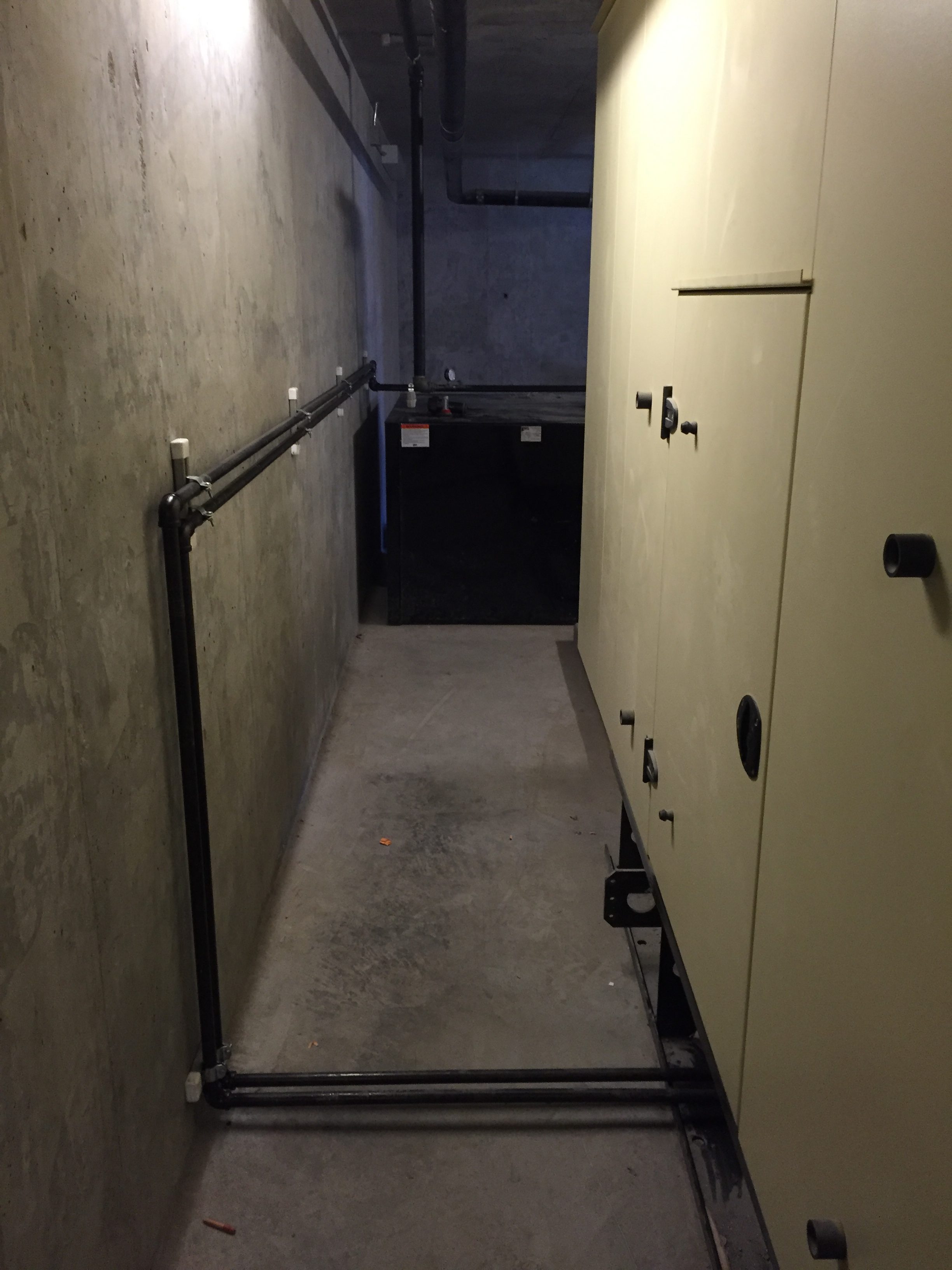

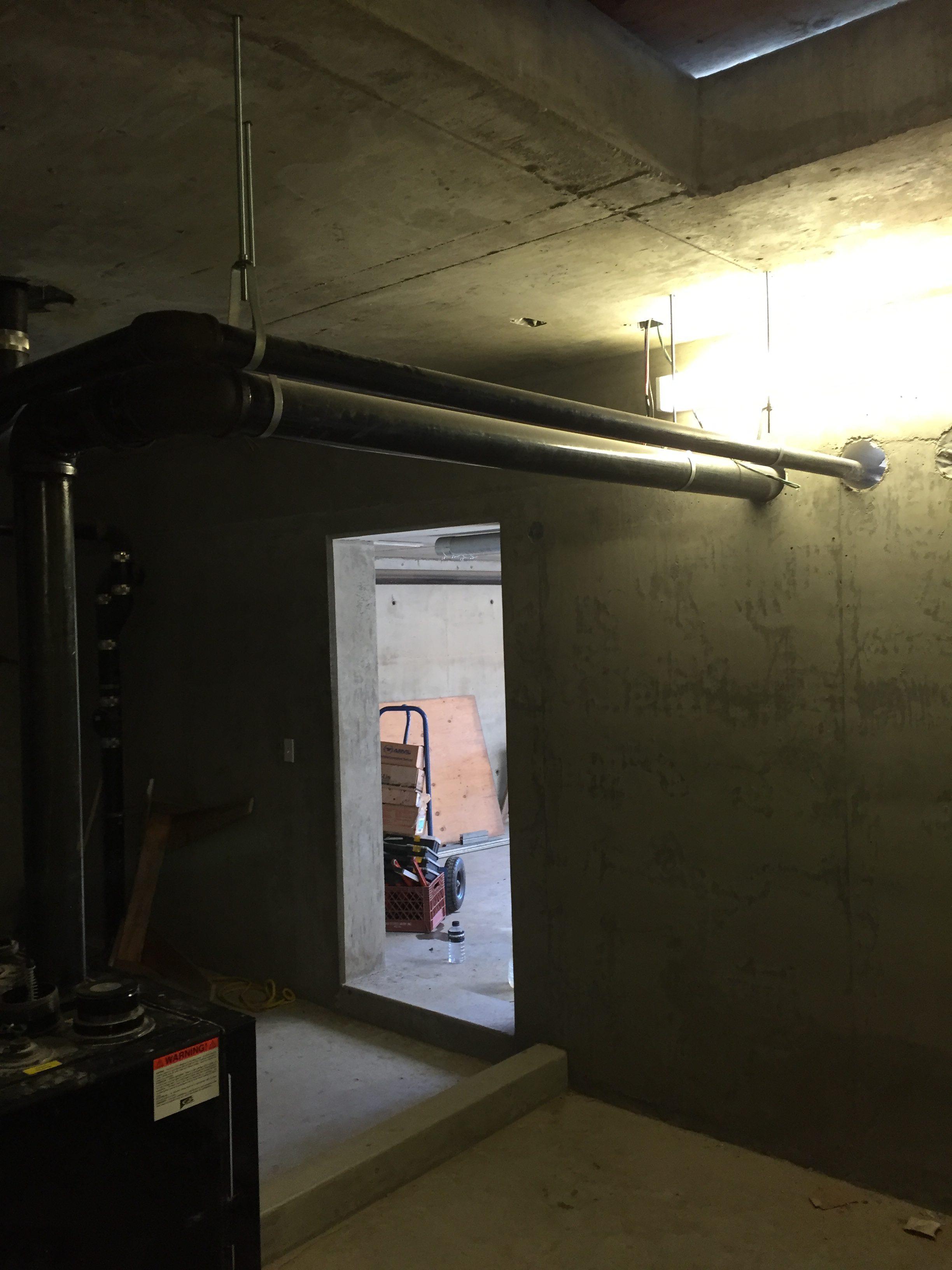

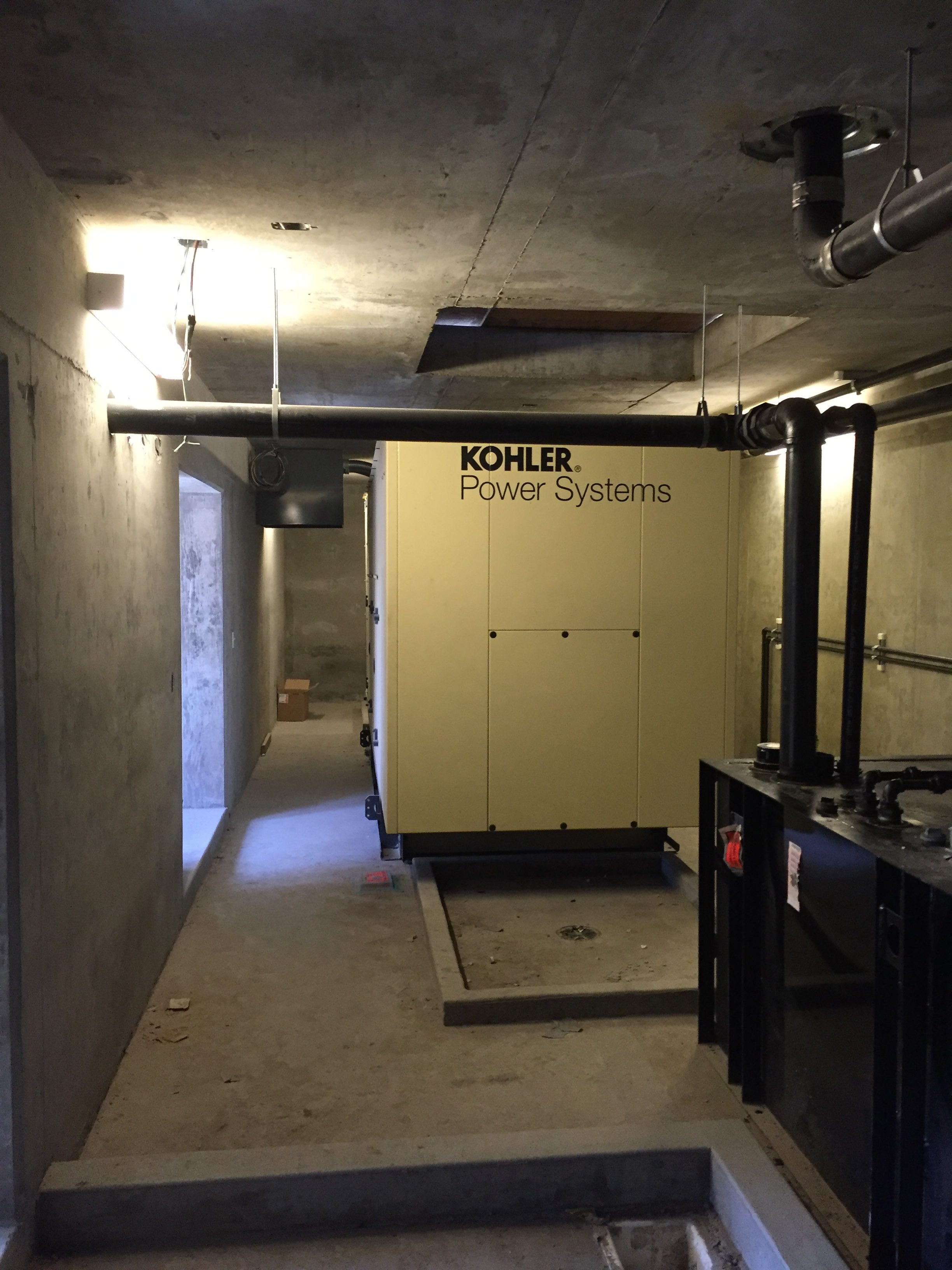

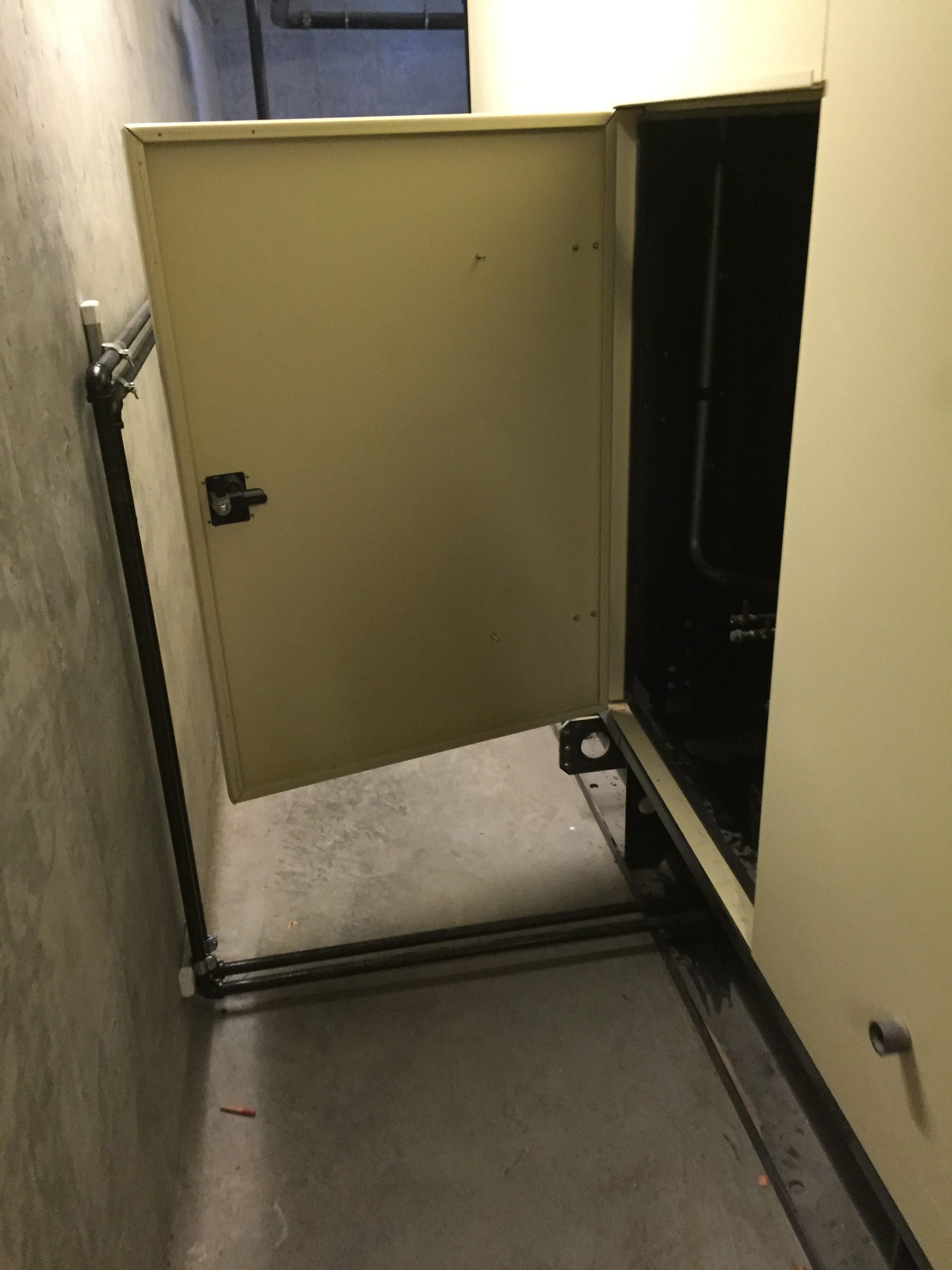

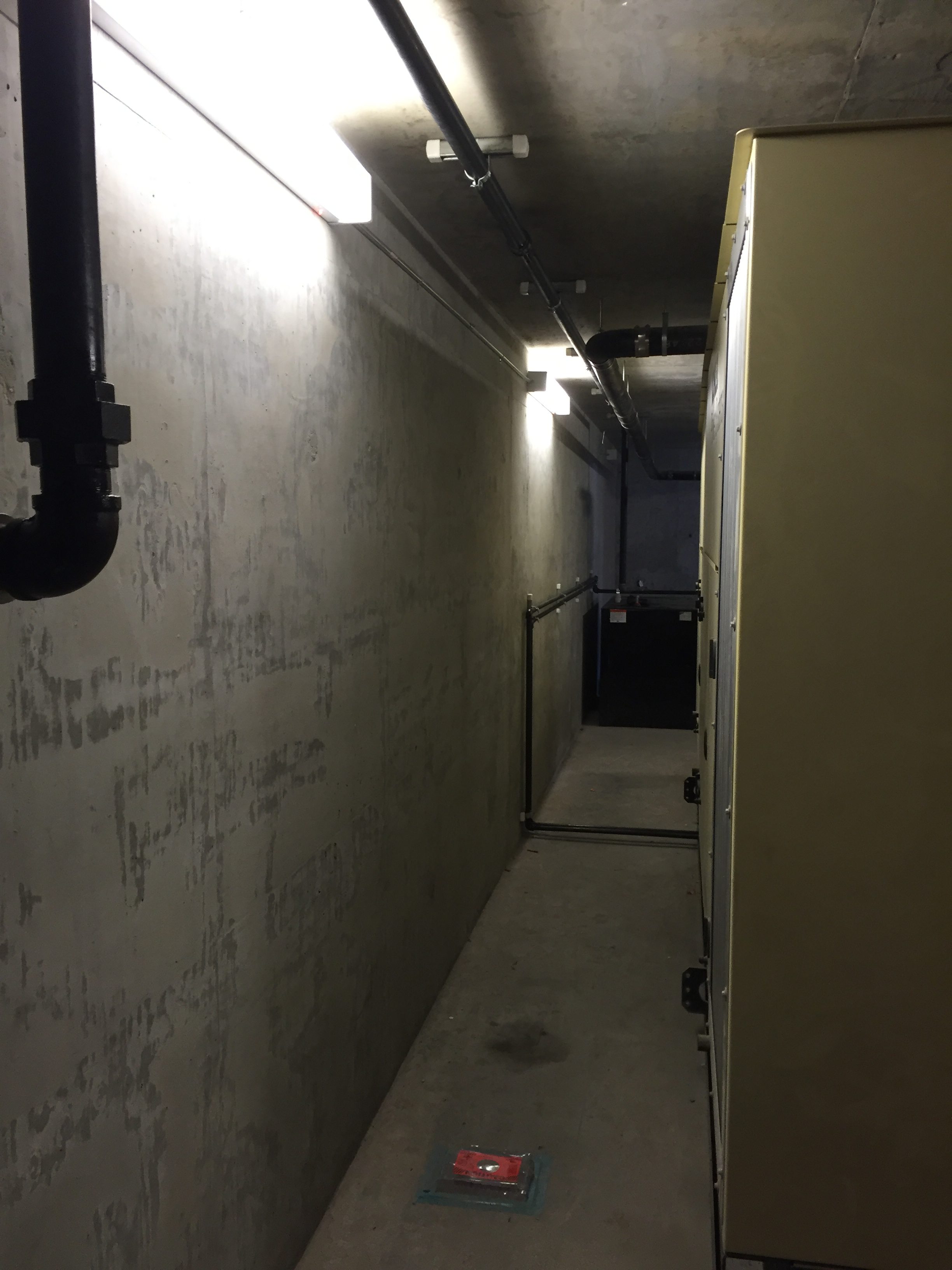

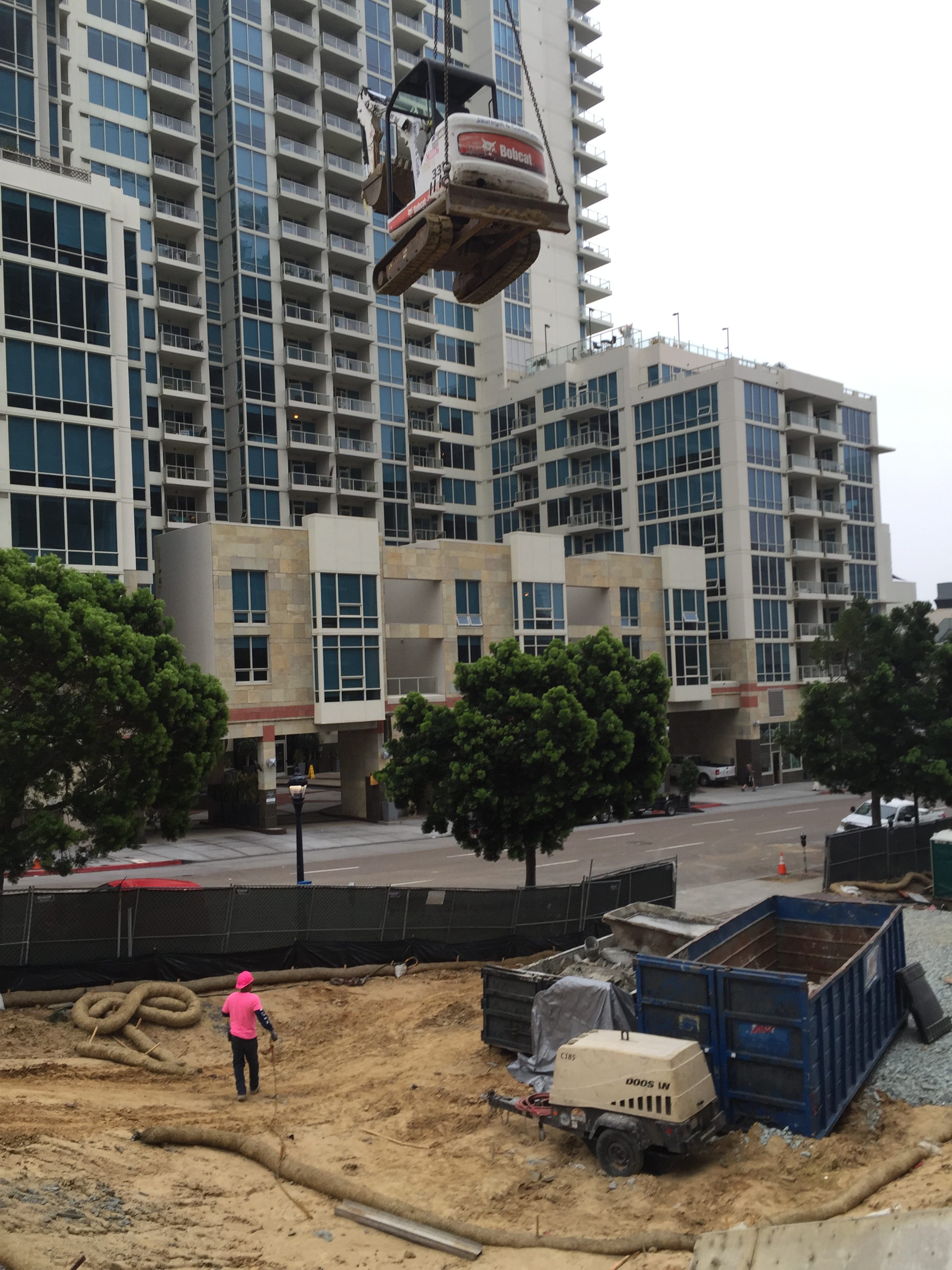

BlueSky Emergency Generator Fill System Installation

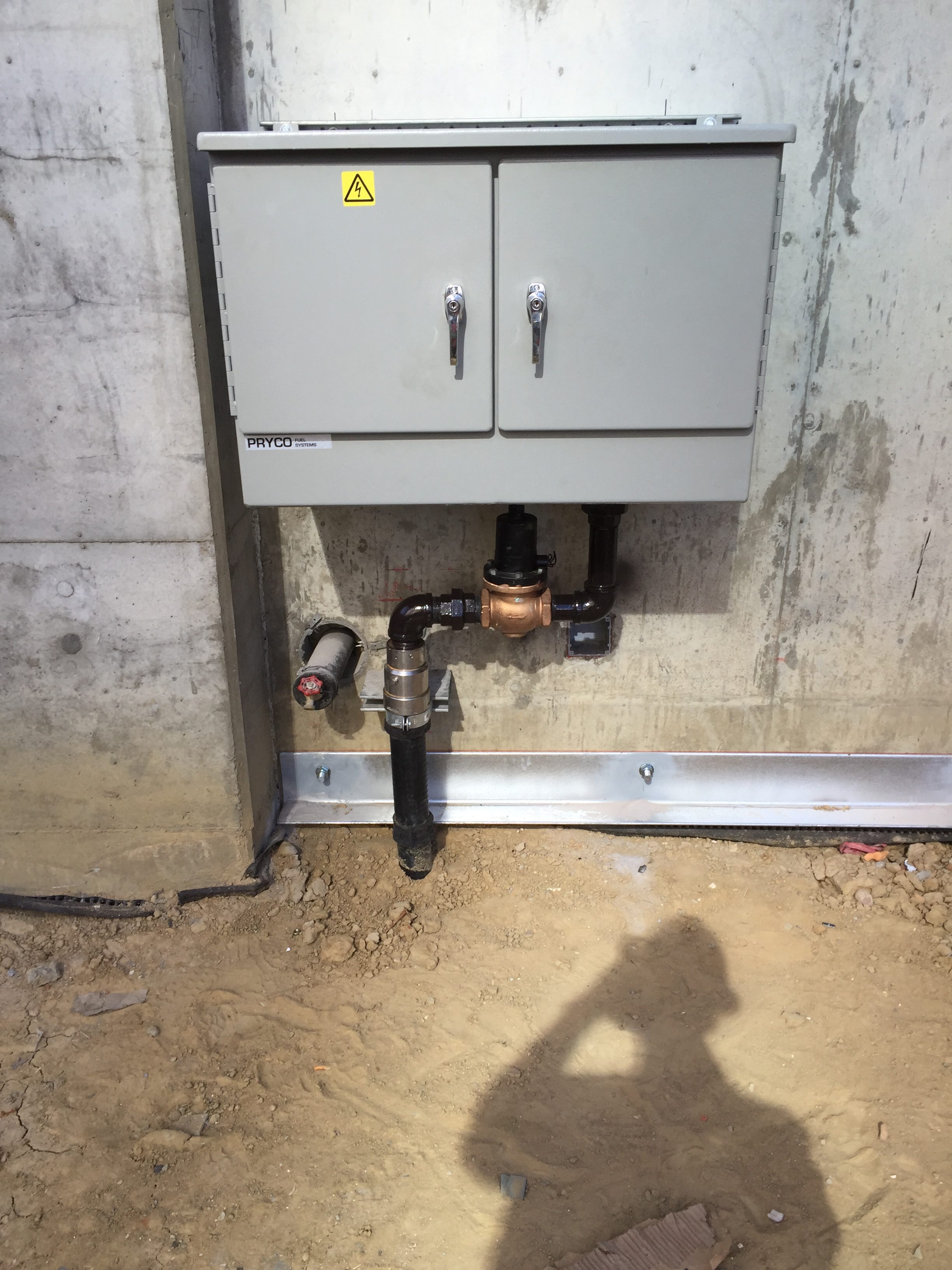

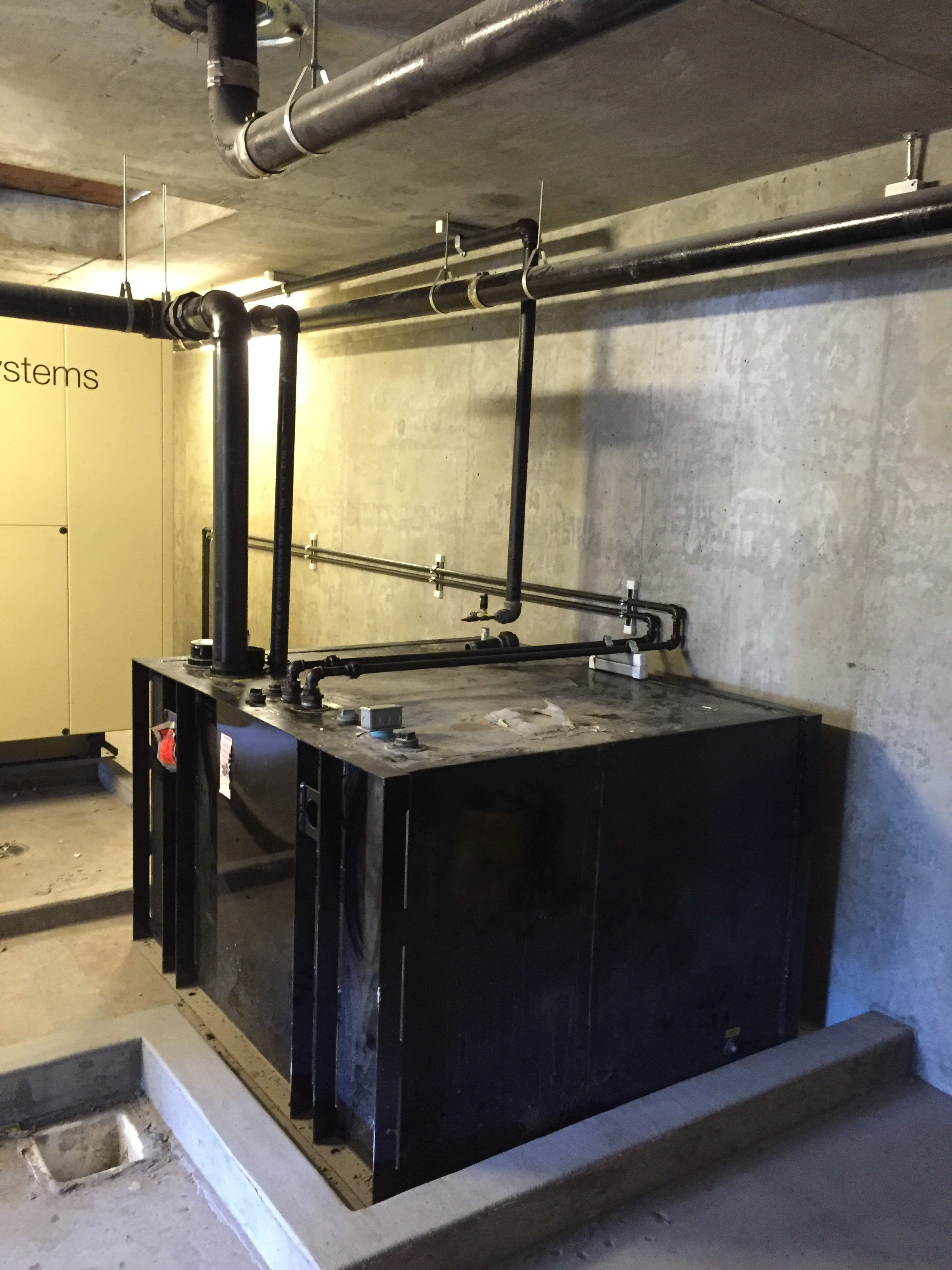

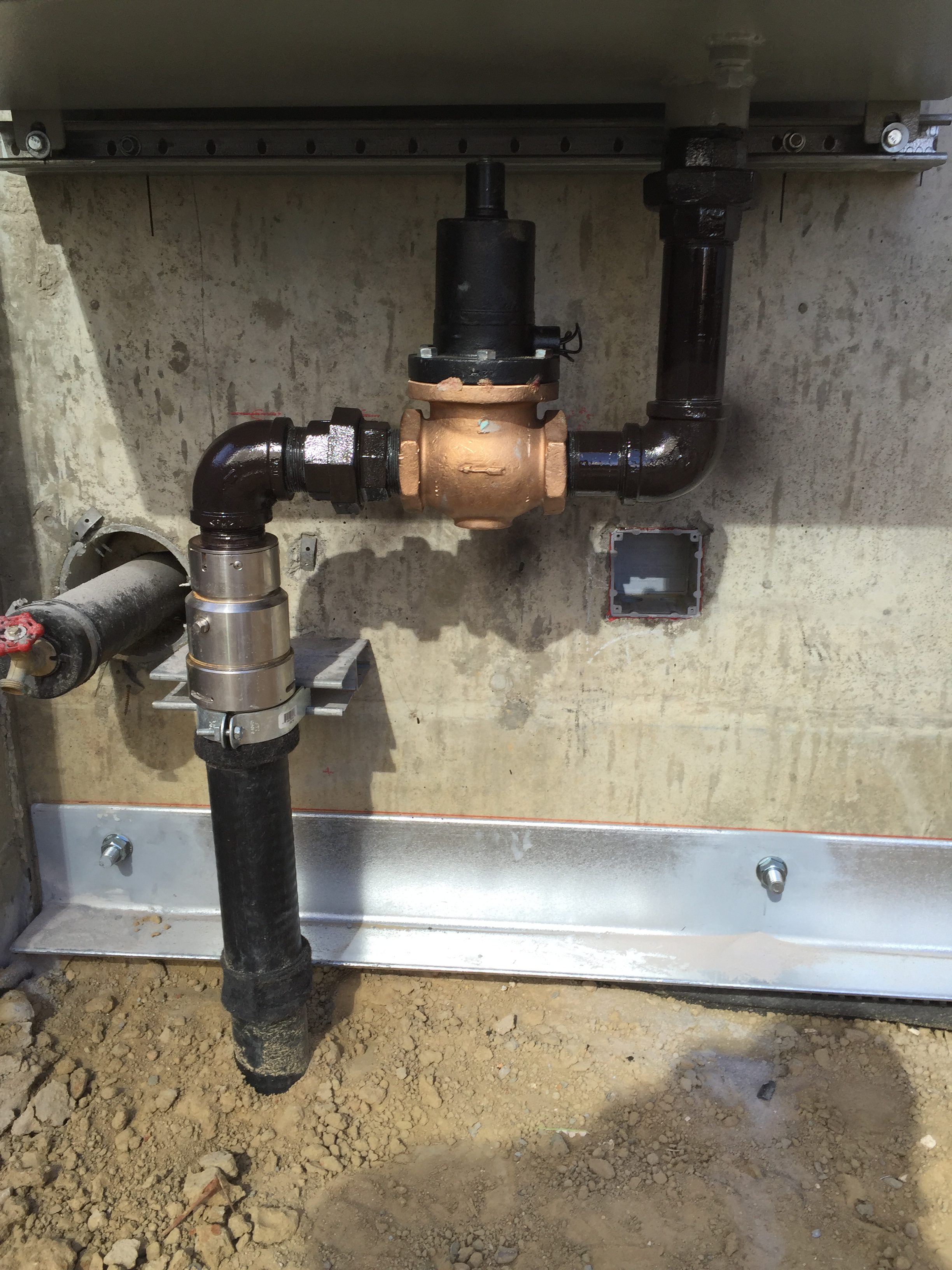

Jauregui & Culver, Inc. furnished and installed the Pryco Remote Fill Station and piped from the remote fill port to the generator’s belly tank with Brugg double wall stainless steel flexible pipe. The piping was run continuous with no joints. We installed a conduit and wiring from the fill station to the generator belly tank to the tank high/low sensor and wired for the solenoid valve. Jauregui & Culver, Inc. provided all testing and inspections.
Hoehn Mercedes Upgrade
Jauregui & Culver, Inc. furnished and installed new double wall fiberglass underground piping, fiberglass sumps for the existing tank collar, dispensers and pump containment boxes, and all penetration fittings. All existing product dispenser containment box and tank sumps were removed per DEH requirements and soil samples were analyzed. The existing underground tank, tank collars, and vent lines remained in place.
Jauregui & Culver, Inc. will continue to provide monitoring certification, precision line testing, and SB989 testing to insure the safety and functionality of the site.
Dion & Sons AST Removal & Replacement
Jauregui & Culver, Inc. removed the three existing diesel above ground storage tanks (ASTs) located at the existing Woodside facility and replaced them with two 12,000 gallon cylindrical ASTs.
Jauregui & Culver, Inc. provided necessary drawings and submittals to the City in order to procure permits. The removal of existing tanks included the removal of the sheet metal roof, sheet metal wall and support framework, and chain-link gates. The existing ASTs were washed and lawfully disposed of. The existing AST masonry support structures, tank slab, curbing, and concrete drive slab were removed so that the new ASTs could be placed side by side with adequate setback distances between the building and the ASTs. The existing diesel below ground piping extending from the pump to the AST enclosure was cut and temporarily capped while Jauregui & Culver, Inc. installed a new SWFG piping transition sump and extended the piping. Jauregui & Culver, Inc. poured a new slab. We furnished and installed 6″ diameter concrete filled steel bollards. The ASTs were assembled and installed.
Jauregui & Culver, Inc. will continue to do the testing and maintenance of this facility, ensuring that it is safe, up to code, and working properly for Dion & Sons.
Fuel Polishing
When the mass power outage spread through Southern California and parts of Arizona in 2013, those who had generators and other forms of emergency power were ahead of the curve. They were prepared, but was their fuel? If your diesel fuel has been stored or unused for a long period of time, then it is of utmost importance to have it polished.
A clean fuel system is essential for preventative maintenance for your diesel engine. One of the main problems with diesel fuel is contamination from algae, microorganisms, fungus, yeast, and bacteria. Algae survive on the hydrocarbons in the fuel and the oxygen in the water in suspension and in the bottom water. If left untreated, the contamination can cause plugged filters, motor operation problems, and expensive repairs. These preventable symptoms of unclean fuel can and will lead to unnecessary failure of your emergency generator.
Early signs of contamination include but are not limited to:
- Dark, smoky exhaust that persists even after the engine of your generator has warmed up.
- Any discovery of corrosion in the fuel tank, or other metal parts that contact the fuel
- Hard deposits on engine injectors are an early and often subtle indicator. (Normal deposits should wipe clean with a cloth.)
The process is relatively simple. We circulate the fuel through a special filter system which removes particulates and purifies the fuel. We then place an additive into the fuel which kills any remaining algae and aids in keeping the fuel clean. There is a clear distinction between samples taken before and after polishing. Upon request, samples can be analyzed through a lab to provide further verification of these results.
At Jauregui & Culver, Inc., we want to serve you and help prevent the expense and inconvenience of generator failure as a consequence of contaminated fuel. It is recommended that your fuel be polished at least once every two years, though most major oil companies, engine manufacturers, and regulatory bodies recommend polishing yearly for back up power sources. In critical facilities, such as hospitals, fuel should be polished at least twice annually to ensure that it is in pristine condition when it is needed for use.
We’ll clean up your fuel and keep you out of the dark!
For more information, please contact us at (760) 743-0518
San Diego Zoo Safari Park
Jauregui & Culver, Inc. installed an above ground diesel storage tank (AST) for the Wild Animal Park (which is now the San Diego Zoo Safari park.) Jauregui & Culver, Inc. procured permits, poured the slab and put in the tank. We continue to service and provide regulatory compliance testing for the tank.
COC Fuel Facility
Jauregui & Culver, Inc. did a full design build for the County of San Diego Operation’s fuel facility. We procured permits, installed tanks, canopy, and a fuel system. We custom built the shoring that went in on the sides of the tank hole. The concrete footings, tank slab, and drive slabs were poured. Jauregui & Culver, Inc. also installed the fuel management system and continues to provide service and testing for the station. The existing fuel site was demolished, and can be seen here.
In addition, Jauregui & Culver, Inc. provided piping for the emergency generator system and is continuing to design build for the emergency generator system and other projects at this facility.
Pala Mini Mart Dispenser Replacement
Jauregui & Culver, Inc. furnished and installed new dispensers for the Pala Casino Mini Mart. We also fabricated and installed a column style canopy extension which including engineer drawings and structural calculations.
CarMax Oxnard
Jauregui & Culver, Inc. provided submittals and drawings of the proposed fuel system necessary for CUPA, Fire Department, and Air Quality agency permitting. We furnished and installed a complete gasoline fuel system that included one 4,000 double wall fiber glass underground storage tank, fuel dispenser, below ground fueling, vapor return and tank vent piping, under dispenser containment, vent transition containment, an enhanced vapor recovery system, and a vapor root monitoring system. This required excavation, disposal of excavated soil, gravel back-fill materials meeting manufacturer specifications, crane, and back-filling operations. The new dispenser was calibrated and brought to compliance and Enhance Leak Detection was provided.
